Solar Module Mounting Structure

Today many of steel structures are being marketed and pushed into the rooftop and ground mounted solar PV projects as low cost and easily available structures. Stated below are few examples of unsustainable structures procured only to save costs and maximize profits.

Structures that are manufactured from light gauge Untenable steels to reduce costs.
Structures that are manufactured from non standard or non compliant steels.
Structures that are not STAAD validated to suit the seismic & wind load factors of the site.
Structures with standard table sizes that do not provide the desired solar power generation output from available space.
Structures that are not protected or hot dip galvanized as per requirements of Indian standards.
Structures that provide substandard solar panel clamping solutions for quick installation of solar panels at site.

As a Result

Most of solar generations systems are interrupted and disrupted before its designed life of 25 years.
The solar panels and the structure gives way to any more than normal wind pressures causing accidents & risk to public life.
Resulting in losses to the capital invested in the solar generating systems.

To Provide Sustainable Solution

We at Pentax Ferro Incroporate provide structural solutions to optimize solar energy generation output, specially tailored, for residential buildings, commercial buildings, industries, community centers, educational institutes, shopping complexes, hospitals, clubs, open parking spaces & small open spaces.

Our in-house design department maps the open area with its obstacles & appropriately designs optimum structures in the avalable layout, to maximize solar energy generation in available space, with performance guarantee of 25 years.

With the help of shadow analysis and 3D modelling tools and software we are able to survey any available site for optimum solar energy generation.

Our Project Stages

Stage 1

Assessment of solar project site with our 3D layout & shadow analysis software.

Stage 2

Provisioning all inputs with STAAD analyzed structures in CAD drawings for actual site simulation & project optimization

Stage 3

Manufacturing & supply of project marked structures as per approved GA drawings & QAP.

Type of module mounting structures design and manufactured by us

GROUND MOUNTED MODULE MOUNTING STRUCTURE:

Open and obstacle free land is the key component to install a ground-mounted solution. In some cases, ground-mounted solar systems can turn an unusable land into an energy-producing asset.

Pentax Ferro provides Solar Mounting Structure in following materials

➤ Hot Dip Galvanized steels with zinc coating ranging from 80 microns to enhanced coatings of up to 120 microns

Foundations can be reinforced concrete, ground screws, or rammed.

Designed as per the MNRE and BIS norms, our products are of superlative quality. Designed to withstand designated wind loads, our products are resilient and have a minimum service life of 30 years.

We provide static analysis on STAAD PRO and material optimization for each project.

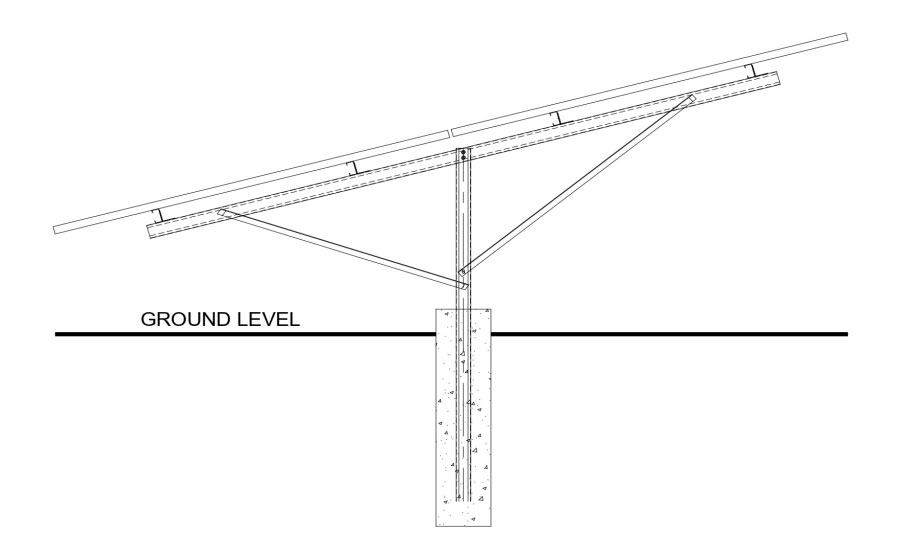

SINGLE POLE TYPE STRUCTURES :

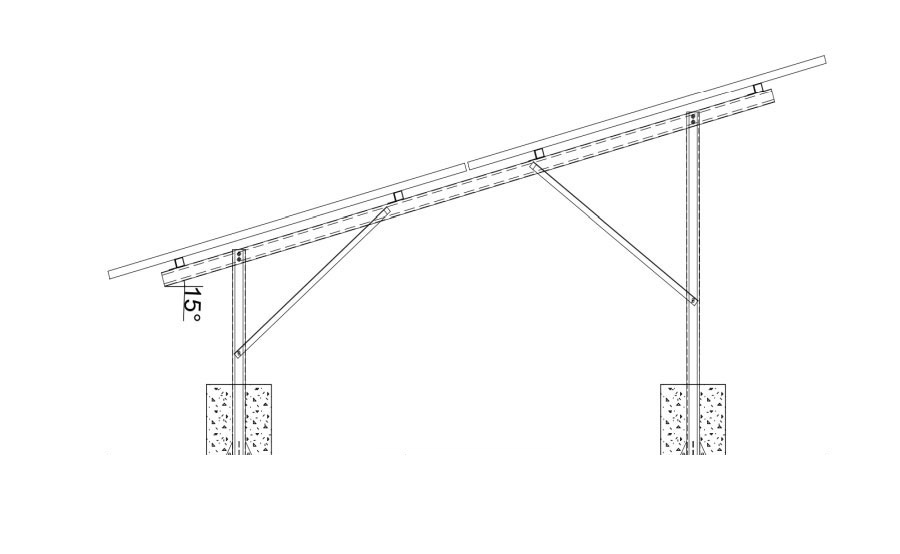

DUAL POLE TYPE STRUCTURES :

ROOFTOP MODULE MOUNTING STRUCTURES:

In these times of ever-increasing real estate prices, terrace space comes at a premium. PENTA SOLAR Roof mounted structures are the perfect solution for urban environments and rooftops. Our Products are particularly designed to be economical & lightweight to protect the underlying roof surface while optimally generating clean and green energy.

Our customized designs ensure maximum utilization of available rooftop space. These designed structures can be made available in quick turnaround time due to our superior engineering & standardization. Our tailored design ensures no slab drilling to avoid cracks & roof leakage.

Features of our rooftop solar mounting structures

Superior Design to optimize the requirement of every rooftop space.
Easy to Install
Designed to withstand wind speeds of up to 200 Kmph
Assured performance for 25 yrs.
Anti-Theft locking system for panel mounting.

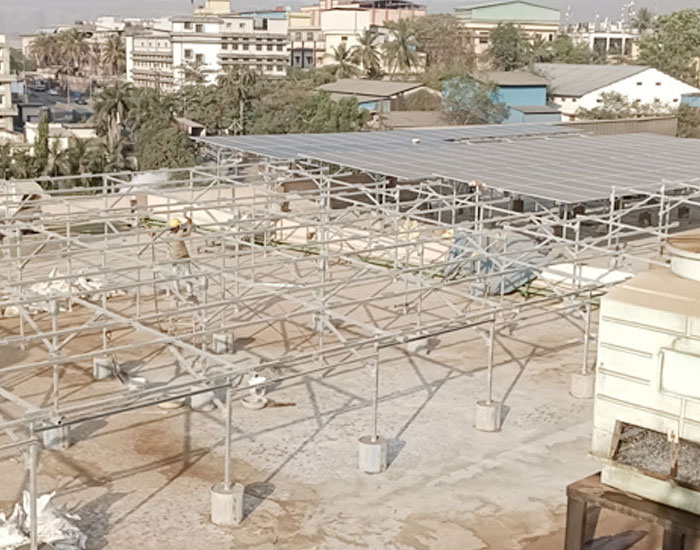

PENTA SOLAR Elevated structures for rooftops (for heights up to 2500 mm):

Suitable for100/120/150 & 180 KMPH wind loads & tilt angles between 05 to 17 deg.

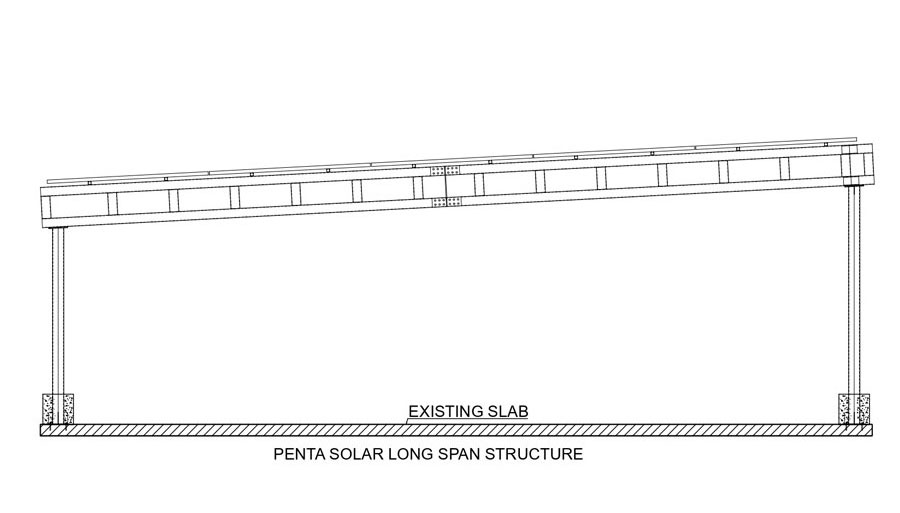

PENTA SOLAR Long span structures with long column to column distances:

Suitable for100/120/150 & 180 KMPH wind loads & tilt angles between 05 to 12 deg.

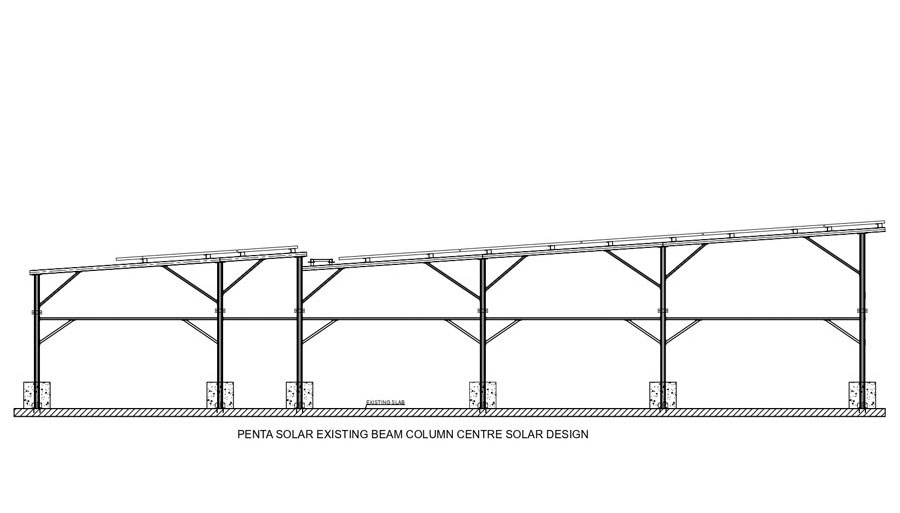

PENTA SOLAR structures designed for existing unequal beam & column positions on rooftops:

Suitable for 100/120/150 & 180 KMPH wind loads & tilt angles between 05 to 12 deg.

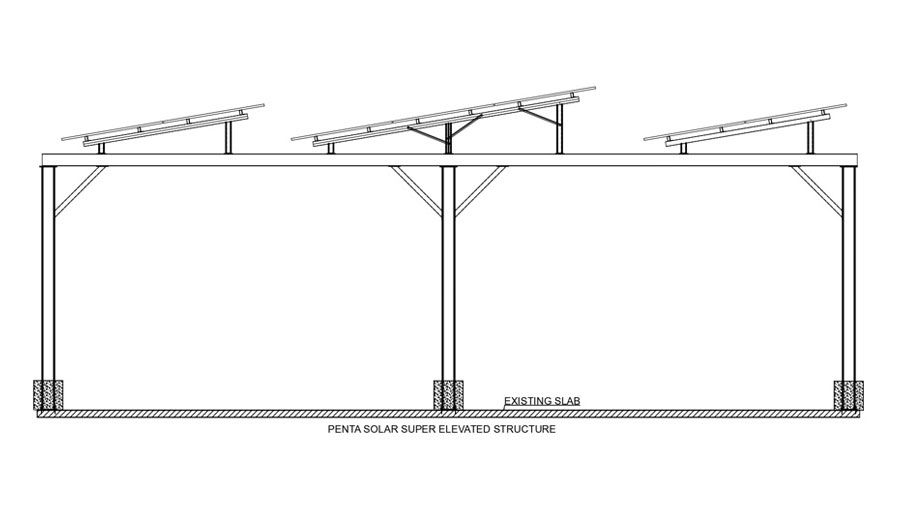

PENTA SOLAR super elevated structures with heights above 3000 mm up to 5000 mm:

Customized for100/120/150 & 180 KMPH wind loads & tilt angles between 5 to 20 deg.

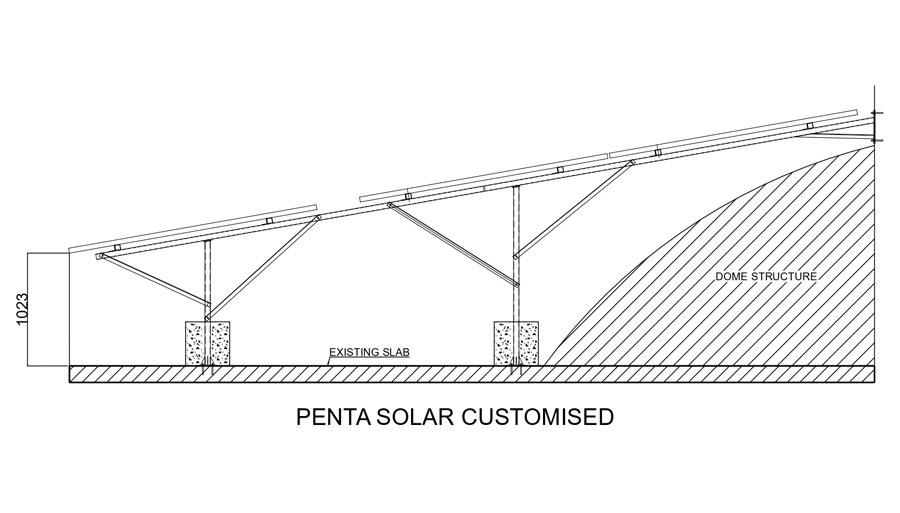

PENTA SOLAR Customized structures with domes & other obstacles on rooftop surfaces:

Suitable for 100/120/150 & 180 KMPH wind loads & tilt angles between 05 to 20 Deg.

Solar Module Mounting Structure

To Provide Sustainable Solution

Our Project Stages

Stage 1

Stage 2

Stage 3

Type of module mounting structures design and manufactured by us

GROUND MOUNTED MODULE MOUNTING STRUCTURE:

SINGLE POLE TYPE STRUCTURES :

DUAL POLE TYPE STRUCTURES :

ROOFTOP MODULE MOUNTING STRUCTURES:

PENTA SOLAR Elevated structures for rooftops (for heights up to 2500 mm):

PENTA SOLAR Long span structures with long column to column distances:

PENTA SOLAR structures designed for existing unequal beam & column positions on rooftops:

PENTA SOLAR super elevated structures with heights above 3000 mm up to 5000 mm:

PENTA SOLAR Customized structures with domes & other obstacles on rooftop surfaces:

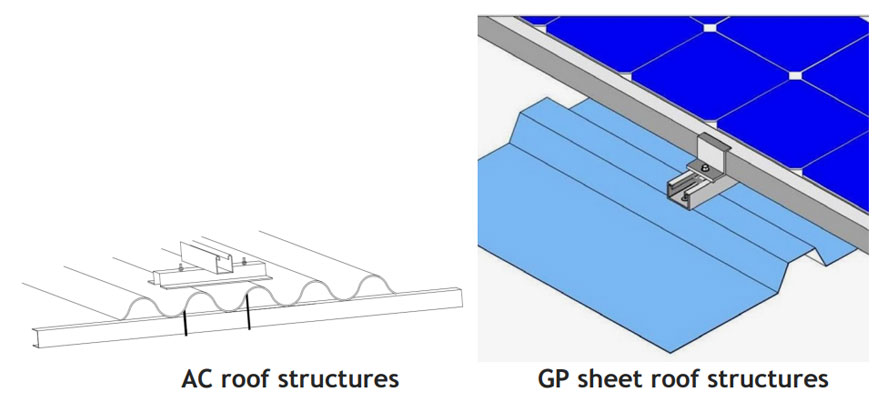

INDUSTRIAL TIN ROOF / AC SHED STRUCTURES FOR SOLAR MODULE MOUNTING:

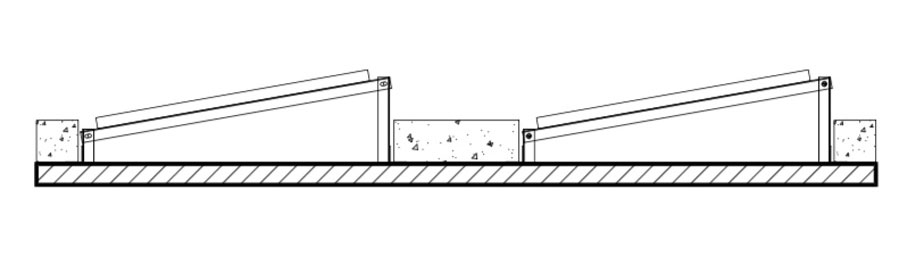

BALLASTED TYPE MOUNTING STRUCTURES FOR PV SOLAR PROJECTS:

CARPORT SOLAR MOUNTING STRUCTURE FOR CAR PARKING AREAS:

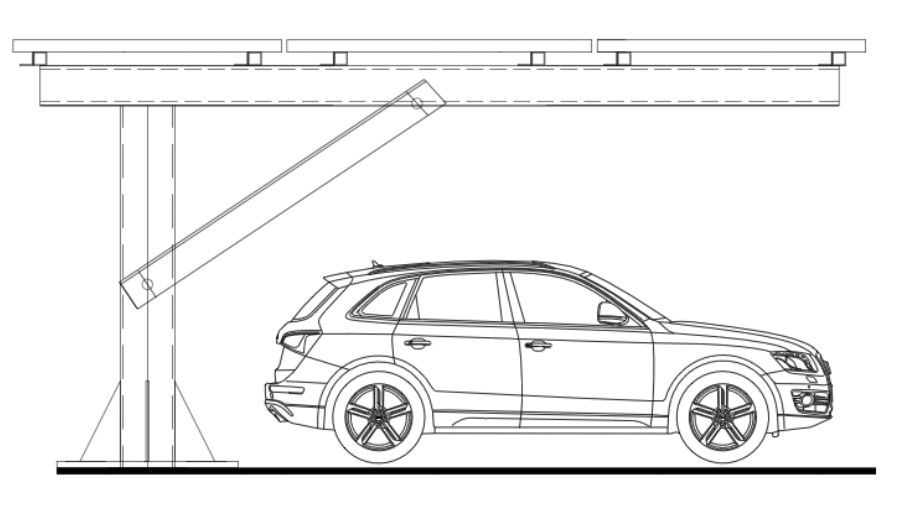

PENTA SOLAR CARPORT SINGLE SPAN:

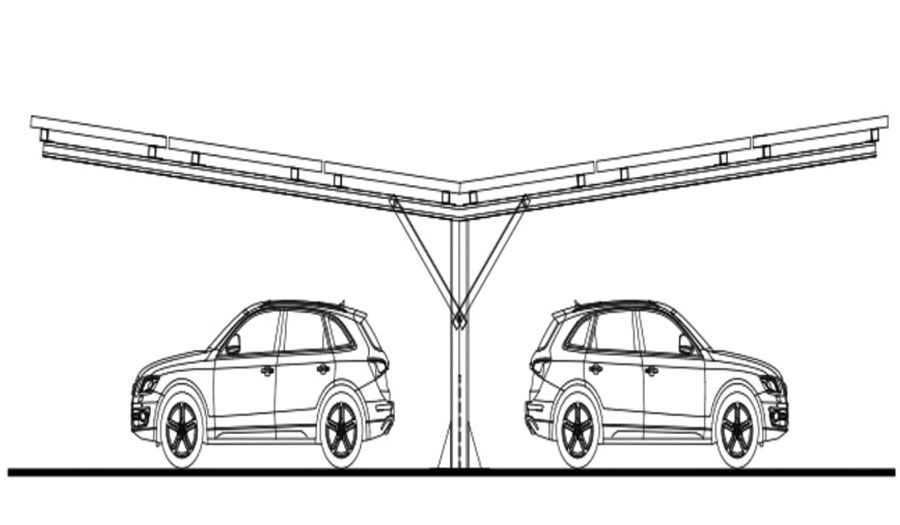

PENTA SOLAR CARPORT DUAL SPAN TYPE:
