Cable Trays, Fittings & Supports

Pentax Cable Support Systems

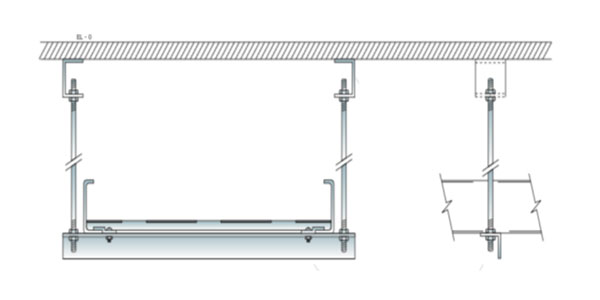

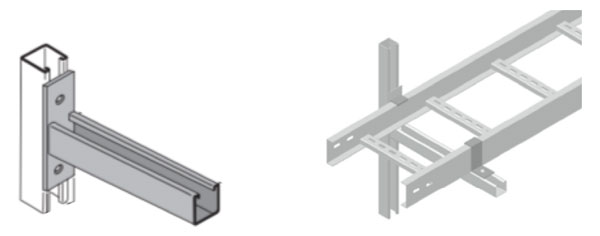

Pentax cable support systems consisting of wide range of Cable trays (Ladder & Perforated) with accessories including supports (for ceiling, wall mounting & floor mounting applications). Our Cable trays are successfully performing for electrical, instrumentation & distribution applications with numerous business verticals. Cable trays with accessories are categorised into light duty, medium duty & heavy-duty types with corresponding supports depending on the requirement of UDL of its cables.

Our CE compliant ISO 9001, 14001 & 45001 certified plant equipped with NC & CNC controlled operations manufactures sustainable cable trays (Ladder & perforated) with its accessories & support systems complimented with BIS certified in-house hot dip galvanizing facility. Our 4 decades of experience and market exposure gives us an edge in understanding the requirements & pain points of the industry by offering them suitable products that perform maintenance free for up to 25 years.

Feature Benefits

Manufactured from steels confirming to IS 1079 / IS 2062.
Hot Dip Galvanised after manufacturing to IS 2629/2633/4759 / ISO 1461.
Available in other finishes like GP, Painting, Powder coated & Epoxy coated.
Loading & deflection criteria in compliance to IEC standard.

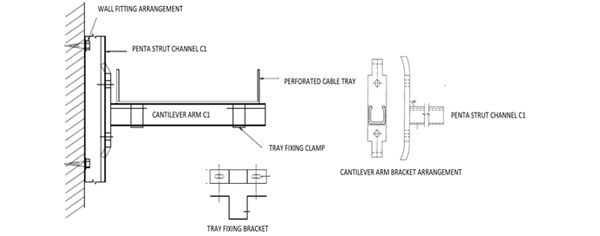

CABLE TRAYS, FITTINGS AND SUPPORTS:

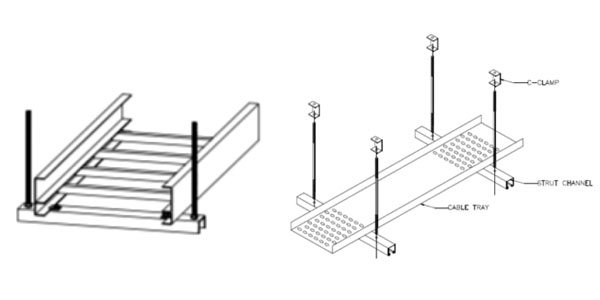

Cable trays are an assembly of formed metal sections, connected by splice platesto provide an economical and rigid structure for supporting a wide range of electric & instrumentation cables. Cable Tray System provides durability, safety, high rigidity, security, and accessibility. Cable Tray System includes fittings, accessories, and requisite hardware.

Types Of Cable Trays Manufactured:

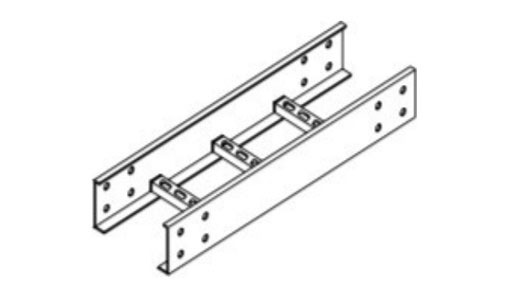

Ladder Type Cable Trays:

An assembly of formed metal longitudinal side rails (channels) connected by transverse members (rungs). The rungs are welded to the side rails.

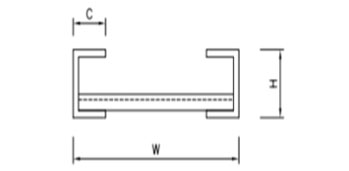

Duty Class	Light	Medium	Heavy
Wall Height	50	75	100
Return Flange	15	25	30
Thickness	1.6	2.0	2.5-3.0

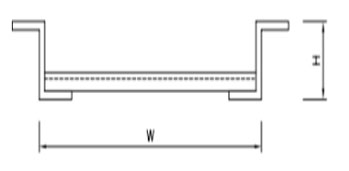

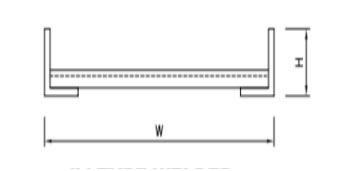

Types of Ladder Trays

'L' Type Welded

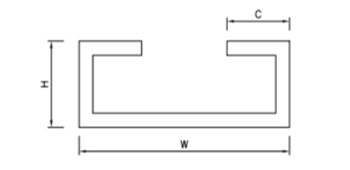

Equal 'C' Type Welded

Reverse Welded

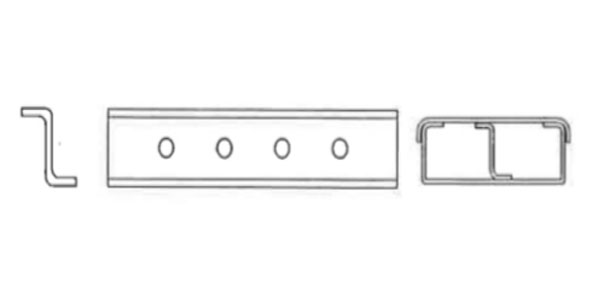

'Z'Type

Ladder Tray Accessories Are Used To Change Direction Of Cables And To Complete A Cable Support System

Types of Accessories

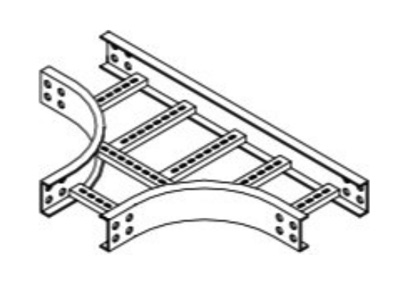

Tee

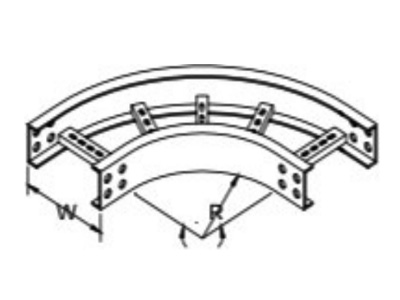

Horizontal bend

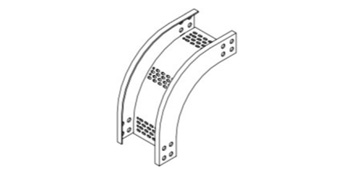

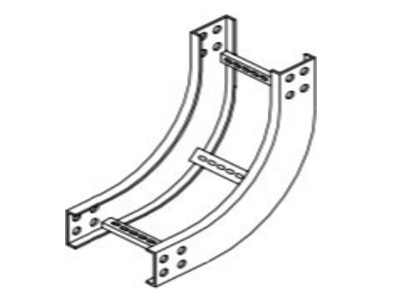

Vertical bend

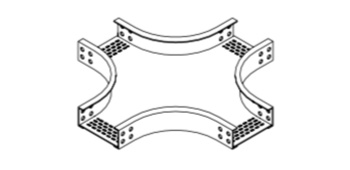

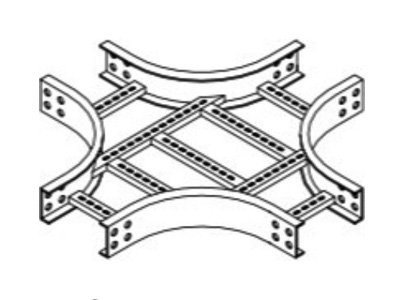

Cross

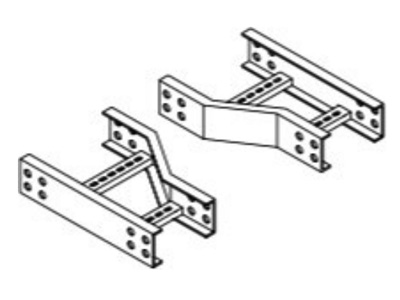

Reducer

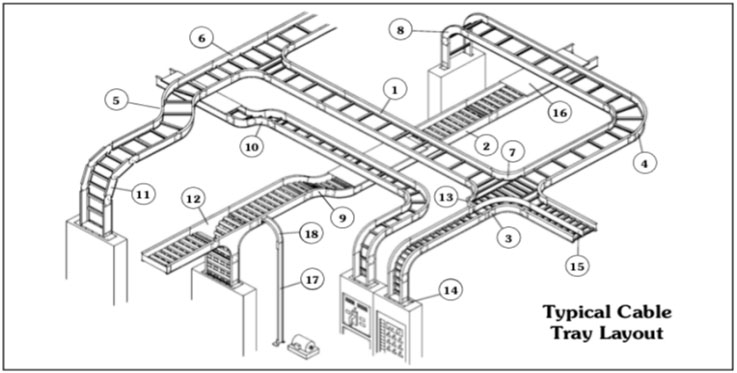

Nomenclature

01. Ladder Type Cable Tray
02. Ventilated Trough Type Cable Tray
03. Splice Plate
04. 90° Horizontal Bend, Ladder Type Tray
05. 45° Horizontal Bend, Ladder Type Tray
06. Horizontal Tee, Ladder Type Tray
07. Horizontal Cross, Ladder Type Tray
08. 90° Vertical Outside Bend, Ladder Type Tray
09. 45° Vertical Outside Bend, Ventilated Type Tray

10. 30° Vertical Inside Bend, Ladder Type Tray
11. 3Vertical Bend Segment (VBS)
12. 3Vertical Tee Down, Ventilated Trough Type Tray
13. 3Left Hand Reducer, Ladder Type Tray
14. 3Frame Type Box Connector
15. 3Barrier Strip Straight Section
16. 3Solid Flanged Tray Cover
17. 3Cable Channel Straight Section, Ventilated
18. 3Cable Channel, 90° Vertical Outside Bend

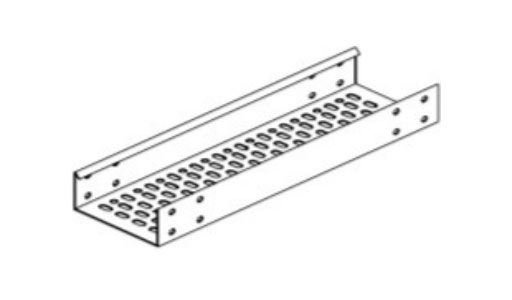

Perforated Cable Trays:

A formed metal section with perforated base and longitudinal side rails.

Duty Class	Light	Medium	Heavy
Wall Height	25	25-50	Abv 50
Return Flange	-	10	15
Thickness	1.6	2.0	2.5-3.0

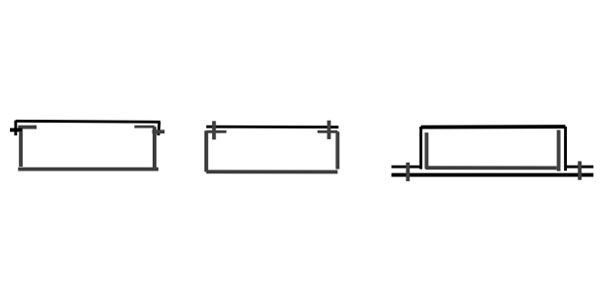

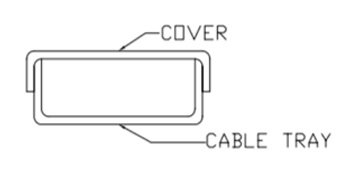

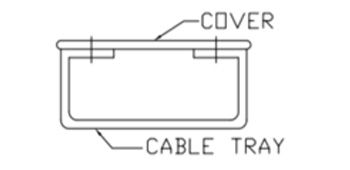

Types Of Perforated Trays With Covers

Vertical Stem

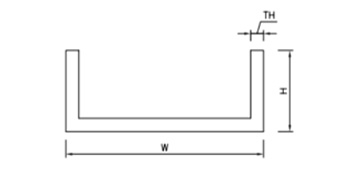

Flange Type

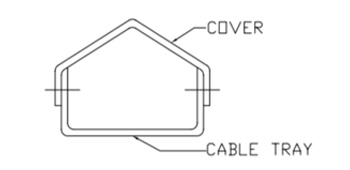

Hut Type Cover

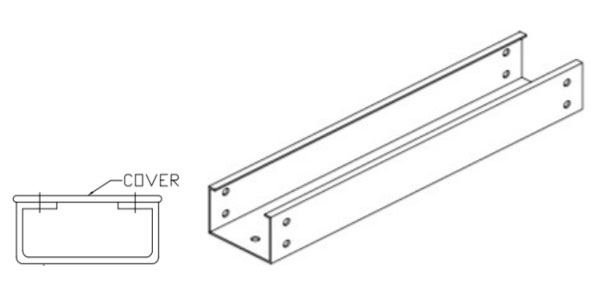

"U" Type Cover

Flat Cover

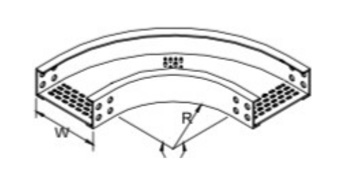

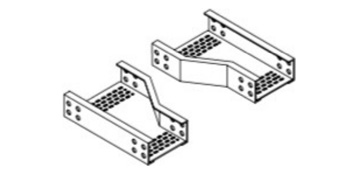

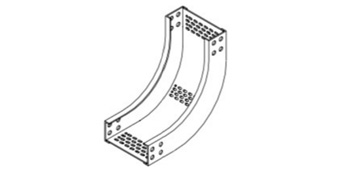

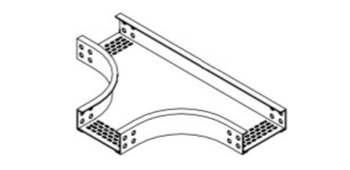

Perforated Tray Accessories Are Used To Change Direction Of Cables And Tocomplete A Cable Support System
